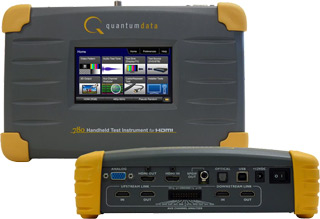

The 780 Handheld Test Instrument is a portable multimedia generator and analyzer that enables you to conduct quick verification tests of all your HDMI products—source, sinks, repeaters, distribution devices—on-site or in an R&D environment. The instruments’ color touch displays make them easy and convenient to use.

The 780 Test Instrument supports pixel rates up to 165MHz and TMDS clock rates up to 225MHz for deep color on the HDMI Tx port and up to 150MHz on the HDMI Rx port.

Quick Specs;

• 225MHz HDMI output supports up to 1080p/60 12-bit 4:4:4
• 150MHz HDMI input for 1080p/60 8-bit 4:4:4 or 12-bit 4:2:2 support
• HDMI HDCP/EDID Network Analyzer function
• Diagnose HDMI interoperability with ‘one button’ test
• Passive monitoring option for source-repeater-sink system testing
• HDMI cable test option
• Touch screen operation
• Compact size - 25 x 15 x 7cm
• Internal rechargeable battery or external DC power

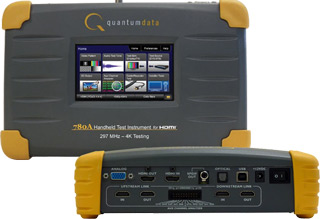

The 780A Handheld Test Instrument offers all of the functinality of the 780, but with higher clock support for UHD 2160p on both Tx and Rx, as well as HDMI 2.0 UHD 60fps 8-bit 4:2:0 mode support, and Audio Return Channel (ARC) emulation.

Quick Specs;

• 300MHz HDMI output (Tx) supports up to 2160p/24-30 8-bit 4:4:4 or 10/12-bit 4:2:2/4:2:0
• 300MHz HDMI input (Rx) for equivalent capability as Tx
• Test UHD 2160p HDMI 2.0 devices at 50/60Hz with 8-bit 4:2:0 pixel encoding and EDID feature enhancements
• View full scaled captured video frames by panning - even 2160p resolutions
• Headphone jack for monitoring incoming LPCM audio
• RS-232 port for command line control
• HDMI cable test option
• Touch screen operation
• Compact size - 25 x 15 x 7cm
• Internal rechargeable battery or external DC power

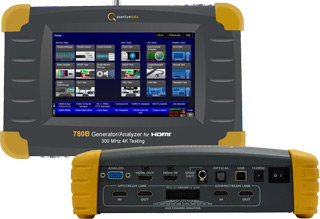

The 780B builds upon the 780A, expanding the interface and functionality for ease of operation. The larger 7” 800x480 resolution colour touch screen display enables easier control and greater convenience in viewing the results of analysis tests such as Auxiliary Channel Analyzer traces, or HDMI source captures. Enhancements for the R&D lab include a new optional auto EDID test which can run verification of commercial or custom EDIDs to determine proper handling by source devices.

Quick Specs;

• 7” colour touch screen, 800x480 resolution
• HDMI Auto EDID Test option
• 300MHz HDMI input (Rx) & output (Tx) supports up to 2160p/24-30 8-bit 4:4:4 or 10/12-bit 4:2:2/4:2:0
• Test UHD 2160p HDMI 2.0 devices at 50/60Hz with 8-bit 4:2:0 pixel encoding and EDID feature enhancements
• View full scaled captured video frames by panning - even 2160p resolutions
• Command line control via USB or RS232
• HDMI cable test option
• Compact size - 25 x 15 x 7cm
• Internal rechargeable battery or external DC power

Test multiple digital video interfaces with a single test instrument!
HDMI – HDBaseT – 3G-SDI

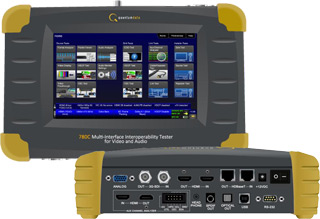

The flagship of the 780 family, the 780C is not restricted to just HDMI functionality. The 780C is equipped with multiple interface types including HDMI, HDBaseT, 3G-SDI and component analog. Testing digital interfaces is supported by both an output port and an input port to allow testing of digital video sources, displays, audio devices and distribution devices. Testing hybrid converter devices supporting 3G-SDI, HDMI, HDBaseT distribution networks is a key application of the 780C as well.

Quick Specs;

• HDMI I/O @ 300MHz for 2160p/30 12-bit 4:2:2 or 60fps 8-bit 4:2:0
• HDBaseT output - emulates an HDBaseT source/transmitter (Tx)
• HDBaseT input - analyse HDBaseT source devices including timing, InfoFrames and protocol tests for HDCP, EDID, CEC and connection detection events.
• SDI output - emulates an SDI/HD-SDI/3G-SDI source up to 2.97Gbps for testing monitors & displays
• SDI input - emulates an SDI/HD-SDI/3G-SDI display to analyse video streams including displaying the video in real time, measuring timing and checking audio
• Analog component - emulates YCPbPr or RGB source up to 80MHz
• THX & Imaging Science Foundation (ISF) test pattern pack options
• 7” colour touch screen
• Compact size - 25 x 15 x 7cm, 1.5kg (excl PSU)
• External DC power ONLY (no battery)

The rack mountable 804A is optimized for testing modern HDMI flat panel TVs on a production line, up to UHD 2160p. It features four (4) HDMI outputs—all active simultaneously—for testing HDTVs with multiple HDMI inputs. This eliminates the need for splitters often required for testing each HDMI input on an HDTV. The 804A can also output component analog and composite analog for testing an HDTVs analog video outputs. The 804A is equipped with all the standard video timings up to 300 MHz and test patterns including 3D patterns and tests for HDMI protocols such as HDCP, EDID and CEC.

The 804A tests compressed and uncompressed HDMI audio formats using a variety of audio test signals. An HDTV’s analog audio inputs can also be tested using the 804A’s programmable analog audio outputs.

Quick Specs;

• HDMI 300MHz supports up to 2160p/24-30 8-bit 4:4:4
• Supports HDMI 2.0 UHD 60fps 8-bit 4:2:0 mode
• Over 100 video timings and 35 standard test patterns, including HDMI 3D test images as specified by the HDMI 1.4a specification
• Support HDMI compressed and uncompressed audio formats. Various patterns with programmable amplitude, sampling rate and bit depths
• RS-232 and USB interface for command line control or for automated test system
• Monitor the status of the test on the color display. Configure the 804A through the touch interface
• Fits in a standard 19” relay rack. Occupies two rack units
• 100-240VAC, 24W power consumption

NEW! 804B supports testing of HDMI 2.0 features for 4K ultra HD TVs at 600MHz

The rack mountable model 804B video test generator is optimized for testing modern HDMI 2.0 flat panel TVs. The 804B video test generator supports testing of HDMI 4K x 2K resolutions up to pixel rates of 600MHz. This enables testing ultra HD TVs with 4K resolutions at 50/60Hz with either 4:2:0 or 4:4:4 pixel encoding. The 804B also supports testing with HDMI 2.0 21:9 format resolutions up to 600MHz.

Quick Specs;

• Supports 4Kx2K 50/60Hz per HDMI 2.0.
• HDMI EDID Functional Tests
• HDMI HDCP 1.4 & 2.2 Functional Tests
• Analog component video output
• Analog RGB computer video output
• Analog composite video outputs
• Standard video timings and patterns
• HDMI and analog audio outputs
• Serial command line interface
• Rack mountable
• Color touch display
• USB host interface (Optional)
